Why use a headless Raspberry Pi?
The Raspberry Pi is celebrated for its versatility, affordability, and endless potential. These small yet powerful devices can be configured for countless tasks, often without the need for a dedicated display.
A headless Raspberry Pi setup—one without an attached monitor—maximizes space, reduces clutter, and unlocks a world of possibilities.
For instance, I use my Raspberry Pi as a network-attached storage device, a task that doesn’t require constant interaction or a connected screen. Keeping a display attached would waste space, especially when the Pi is in a remote location or rarely accessed.
Many users face similar scenarios, whether their Raspberry Pi powers irrigation systems, monitors solar panels, or serves as part of a security system in a distant location like a vacation residence.
Here are just a few examples of how a headless Raspberry Pi can transform your setup:
Home automation
A headless Raspberry Pi can remotely control and monitor home lighting, temperature, and security systems. For example, a family might automate their home’s HVAC system and lighting schedules, reducing energy costs by using real-time occupancy data.
Media center
Turn your Raspberry Pi into a media center to stream videos and music seamlessly. Imagine accessing 4K content, music playlists, and photo albums from your smartphone, all thanks to a headless Raspberry Pi connected to your TV.
Internet of Things (IoT) projects
A headless Raspberry Pi is ideal for collecting and analyzing data from IoT sensors and devices. For instance, a small business could monitor solar panel performance, optimizing energy production and battery usage based on real-time data.
Education and research
In educational and research environments, headless Raspberry Pi setups shine by providing cost-effective tools for teaching programming, conducting experiments, and prototyping. A university lab, for example, might use multiple Pis to analyze chemical reactions in real time, saving on expensive equipment.
Remote workstations
Using RealVNC Connect, a headless Raspberry Pi can become a portable remote workstation. A freelance programmer might configure one as a secure private cloud server, enabling seamless access to project files from various locations.
Why go headless?
A headless setup eliminates the hassle of managing cables and physical displays. In my own setup, running an HDMI cable behind a wall-mounted TV was impractical and messy.

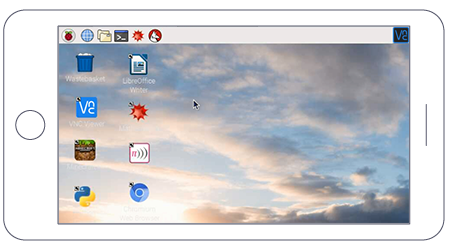

Remote access through tools like RealVNC Connect solves this problem elegantly. After a quick initial setup with a display, you can disconnect the screen permanently and manage the Raspberry Pi as if you were sitting in front of it.
Whether for home automation, IoT innovation, or educational purposes, a headless Raspberry Pi unlocks efficiency, flexibility, and new possibilities. With the right configuration, these devices become powerful tools for creating and managing projects from anywhere in the world.
Setting up your headless Pi with RealVNC Connect in 4 easy steps
Let’s look at the four easy steps to connect both and make them work seamlessly. The process is easy.
1. Make sure you're using the latest version of Raspberry Pi OS

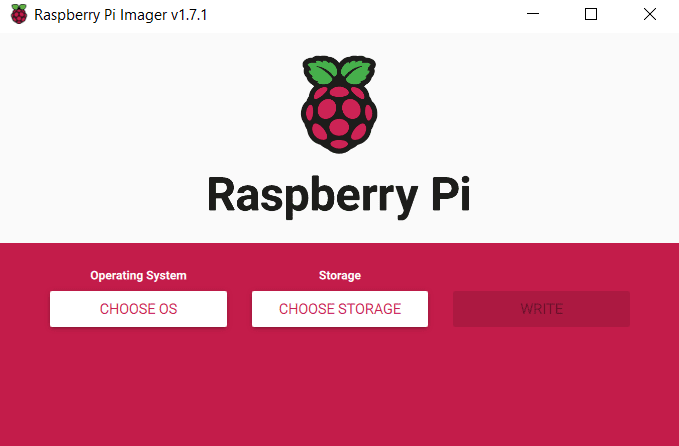

In this first step, start with two things. First, make sure you’re using the latest version of Raspberry Pi OS. You can use a micro SD card and the Raspberry Pi Imager tool to upgrade to the newest version, should you need to. Though, make sure that you’ve backed up your data beforehand.
Or you can update the packages running on your device by running the following two commands at the command prompt:
Terminal $
sudo apt update
sudo apt upgrade
Next, you’ll need to connect the Pi to a monitor or TV, which will require an internet connection.

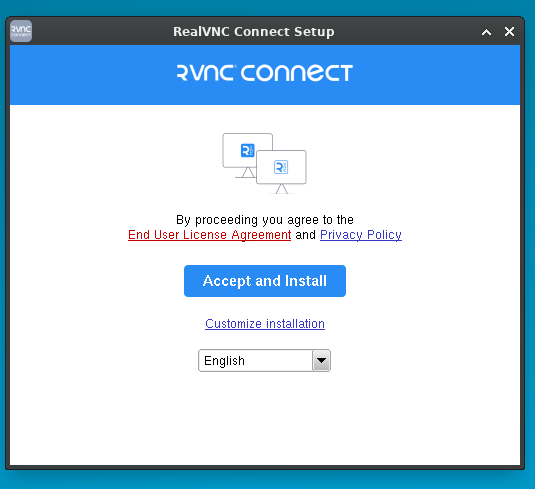

2. Set up RealVNC Server on your Raspberry Pi

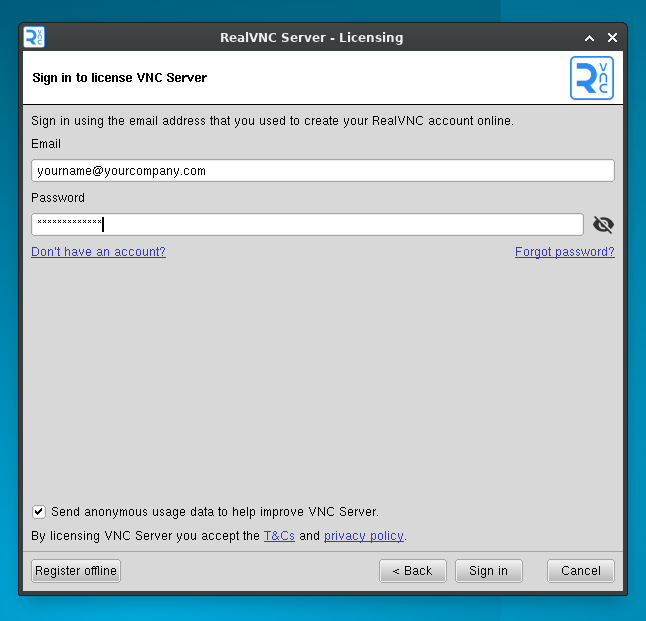

As you might know, RealVNC Server comes preinstalled on Raspberry Pi. This convenience is why enabling it is easy.
To do this, run the following command:
Terminal $
sudo apt install realvnc-vnc-server realvnc-vnc-viewer
RealVNC is disabled by default on your Raspberry Pi device; however, you can easily enable it using either the desktop or the terminal.

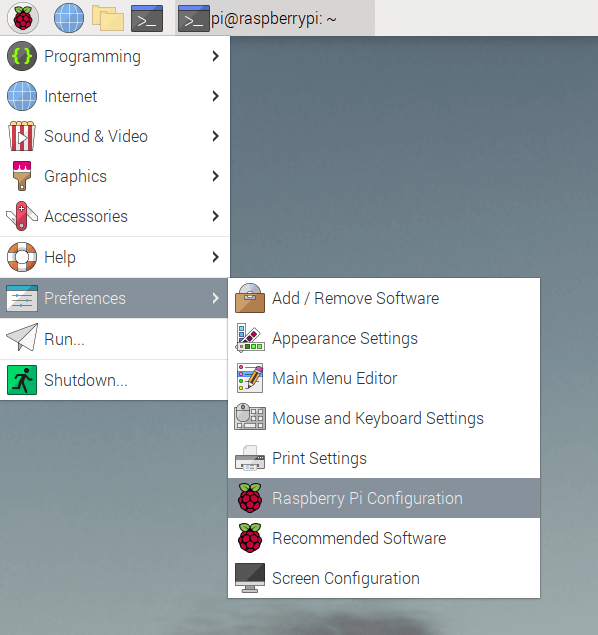

To enable RealVNC on the desktop, navigate to the start menu > Preferences > Raspberry Pi Configuration.
Then select ‘Interfaces’, and click ‘Enable’ next to VNC. Then click ‘OK’.
To enable VNC using the terminal, enter the following command:
Terminal $
sudo raspi-config
Using the arrows, navigate to ‘Interfacing Options’ > ‘VNC’, then choose ‘Yes’ and select ‘OK’.

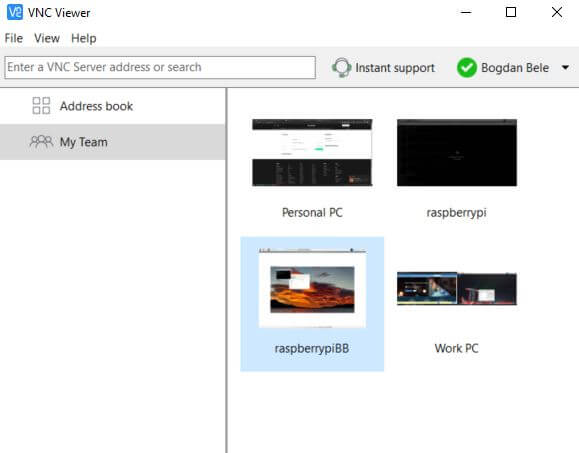

Once you’ve completed the whole process, your Raspberry Pi should appear in the list of devices in VNC Viewer.
3. Configure the resolution
The third step depends on how you use your Raspberry Pi. Accessing software with a single window requires only more resources. However, if you use the machine to access various media, like me, you may want it to run in Full HD resolution.
Either way, changing the resolution is not difficult. In your Raspberry Pi menu, go to Preferences > Raspberry Pi Configuration.

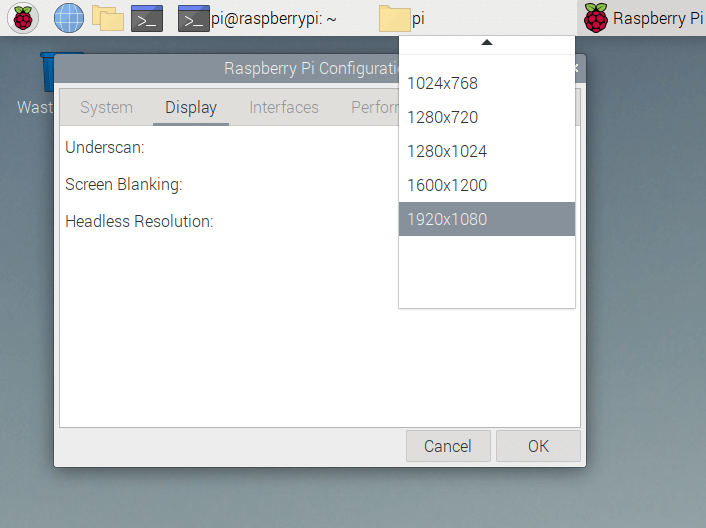

Once you’re there, click the Display tab. In there, you’ll come across Headless Resolution. Select the resolution that fits your purposes, and then reboot as prompted.
4. Disconnect your display and use your headless Raspberry Pi
Once rebooted, you can disconnect whichever display you were using. Once you’ve confirmed that, you can get to the Pi. And that’s it.
Now, you can set your Pi somewhere comfortable, and when you need to access it, you can simply double-click within RealVNC Viewer. No monitor is required.
RealVNC Connect's built-in security features
RealVNC Connect is designed with security as a cornerstone. It offers active protection for remote access to your Raspberry Pi. Here’s a detailed look at how it ensures the security of your connections so your data and devices remain safe.
End-to-end encryption
One of the standout security features of RealVNC Connect is its use of AES 256-bit encryption. This industry-standard encryption ensures that all data transmitted during remote sessions is protected from interception or tampering.
End-to-end encryption helps even if someone intercepts the communication between your Raspberry Pi and your device. Without the encryption keys, the data would be unreadable.
Also, the encryption is applied as soon as a connection is established and remains active for the duration of the session, offering continuous protection.
This feature is particularly crucial when accessing your Raspberry Pi over public or unsecured networks, as it safeguards sensitive information like passwords and configuration settings.

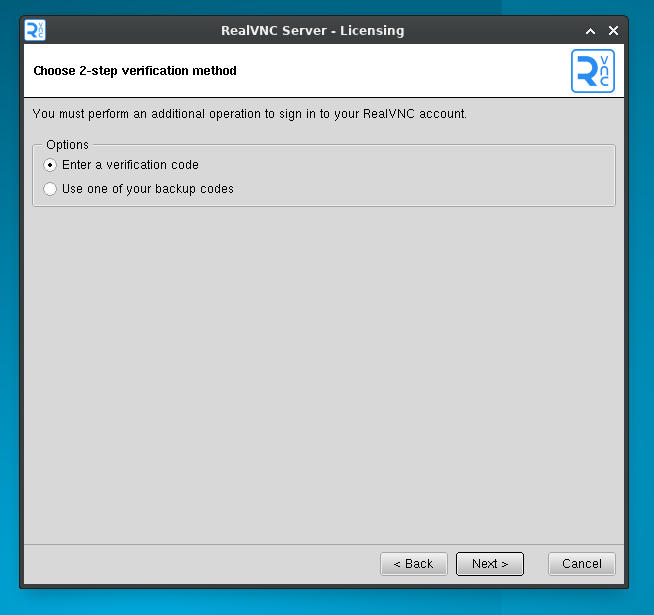

Two-factor authentication (2FA)
To strengthen account security, RealVNC Connect supports two-factor authentication (2FA). This feature requires a second verification step beyond the standard password, adding an additional layer of protection.
Once you enter your password, you’ll need to provide a code sent to your trusted device or email. This ensures that even if your password is compromised, unauthorized users cannot gain access without the second factor.
RealVNC makes enabling and managing 2FA straightforward, giving you peace of mind without added complexity. When you require a combination of something you know (password) and something you have (verification code), 2FA significantly reduces the risk of unauthorized access.
Cloud connectivity

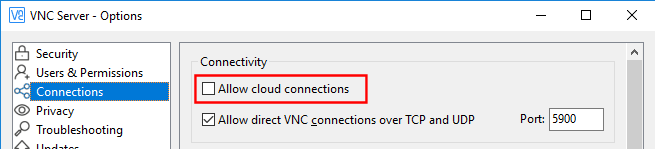

RealVNC’s private cloud connection brokering simplifies remote access while maintaining a high standard of security. This feature eliminates the need for complex configurations like SSH tunneling or port forwarding.
The RealVNC cloud acts as a secure intermediary between your Raspberry Pi and the devices you use to access it. It manages the connection without exposing your network to external threats.
This secure and user-friendly approach ensures you can connect to your Raspberry Pi from anywhere without compromising safety.
Device authentication
Every device attempting to connect to your Raspberry Pi through RealVNC Connect must undergo device authentication.
Before a connection is established, RealVNC verifies the identity of the connecting device. This involves validating credentials and checking against the list of authorized devices.
You can manage which devices have access to your Raspberry Pi, granting or revoking permissions as needed.
Device authentication provides an additional layer of control, ensuring that only trusted devices can interact with your system.
Automatic session timeout
RealVNC Connect includes an automatic session timeout feature to prevent unauthorized access if a session is left unattended.
Sessions automatically disconnect after a period of inactivity, minimizing exposure to potential threats. You can adjust the timeout duration to suit your security preferences, balancing convenience and safety.
This feature ensures that even if you forget to close a session, your system remains protected.
Troubleshooting RealVNC Connect Issues
You might encounter occasional challenges even with a smooth setup while using RealVNC Connect with your Raspberry Pi. Here are some common issues and their solutions:
Connection timeouts
Cause: Network instability or incorrect settings.
Solution: Make sure your Raspberry Pi and the device running RealVNC Viewer are connected to the same network. If you are using RealVNC’s cloud connectivity, check your internet connection for interruptions.
Authentication failures
Cause: Incorrect credentials or outdated software.
Solution: Verify that you’re entering the correct username and password for your Raspberry Pi. To prevent compatibility issues, update the RealVNC Server and Viewer to the latest versions. Also, double-check that two-factor authentication (2FA), if enabled, is correctly set up.
Display resolution issues
Cause: Misconfigured headless resolution settings.
Solution: Go to Preferences > Raspberry Pi Configuration > Display Tab > Headless Resolution on your Raspberry Pi and adjust the resolution to match your requirements. Restart your Raspberry Pi to apply changes.
Device not showing in RealVNC Viewer
Cause: The VNC Server is disabled or misconfigured.
Solution: Log in to your Raspberry Pi and ensure that RealVNC Server is enabled under Interface Options in the Raspberry Pi Configuration menu.
Lag or performance issues
Cause: Insufficient bandwidth or resource-heavy processes.
Solution: Make sure you’re on a high-speed, stable internet connection. Reduce the display resolution or limit resource-intensive tasks on your Raspberry Pi during remote sessions. Switch to a wired Ethernet connection for improved stability and speed.
Maximize your Raspberry Pi with RealVNC
A headless Raspberry Pi setup with RealVNC Connect empowers you to do more—whether it’s home automation, IoT development, or simplifying your workspace. With robust security features like AES-256 encryption, two-factor authentication, and private cloud connectivity, you can manage your Raspberry Pi securely from anywhere.
Take the next step and start your free 14-day trial of RealVNC Connect today to experience seamless, secure remote access built for your needs.
